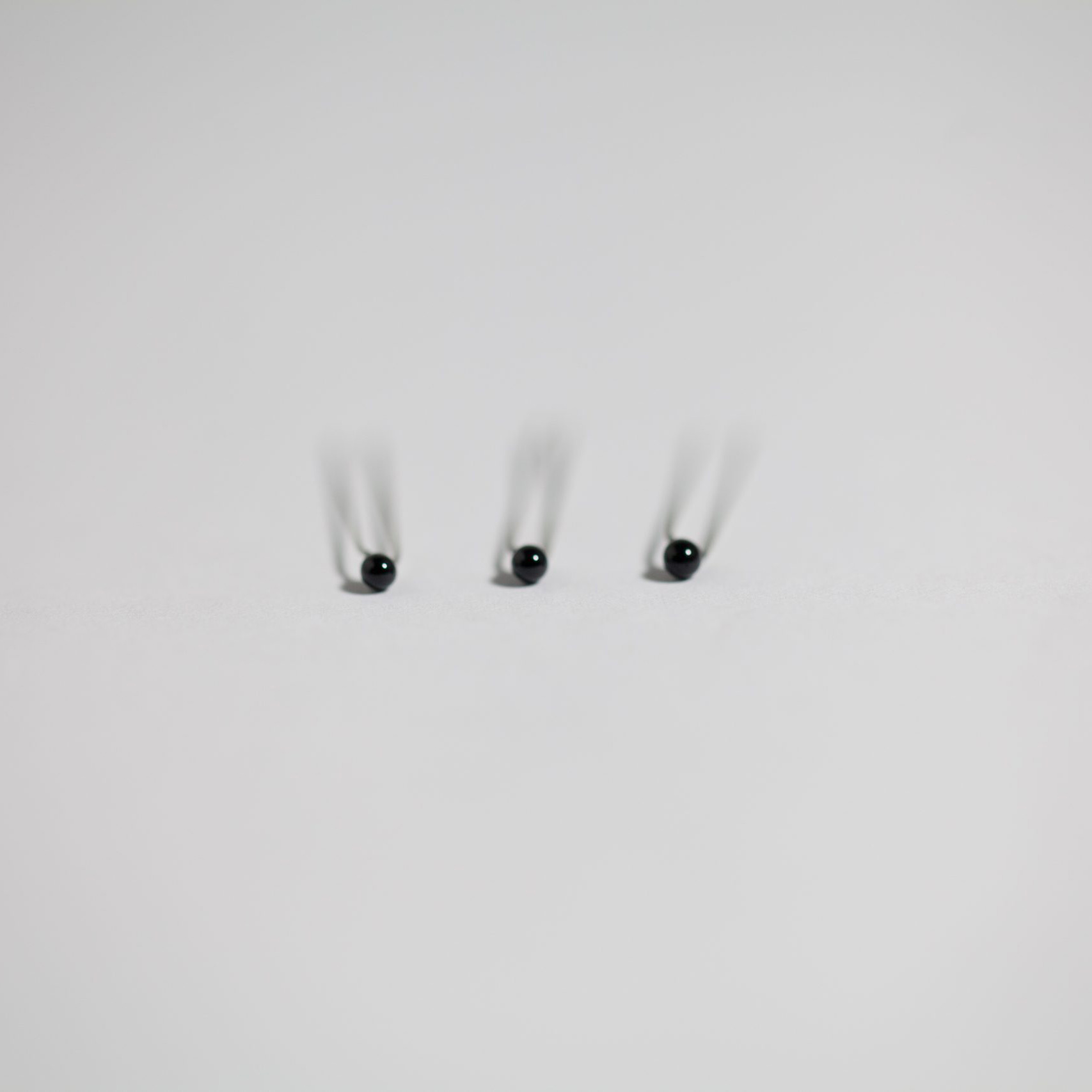

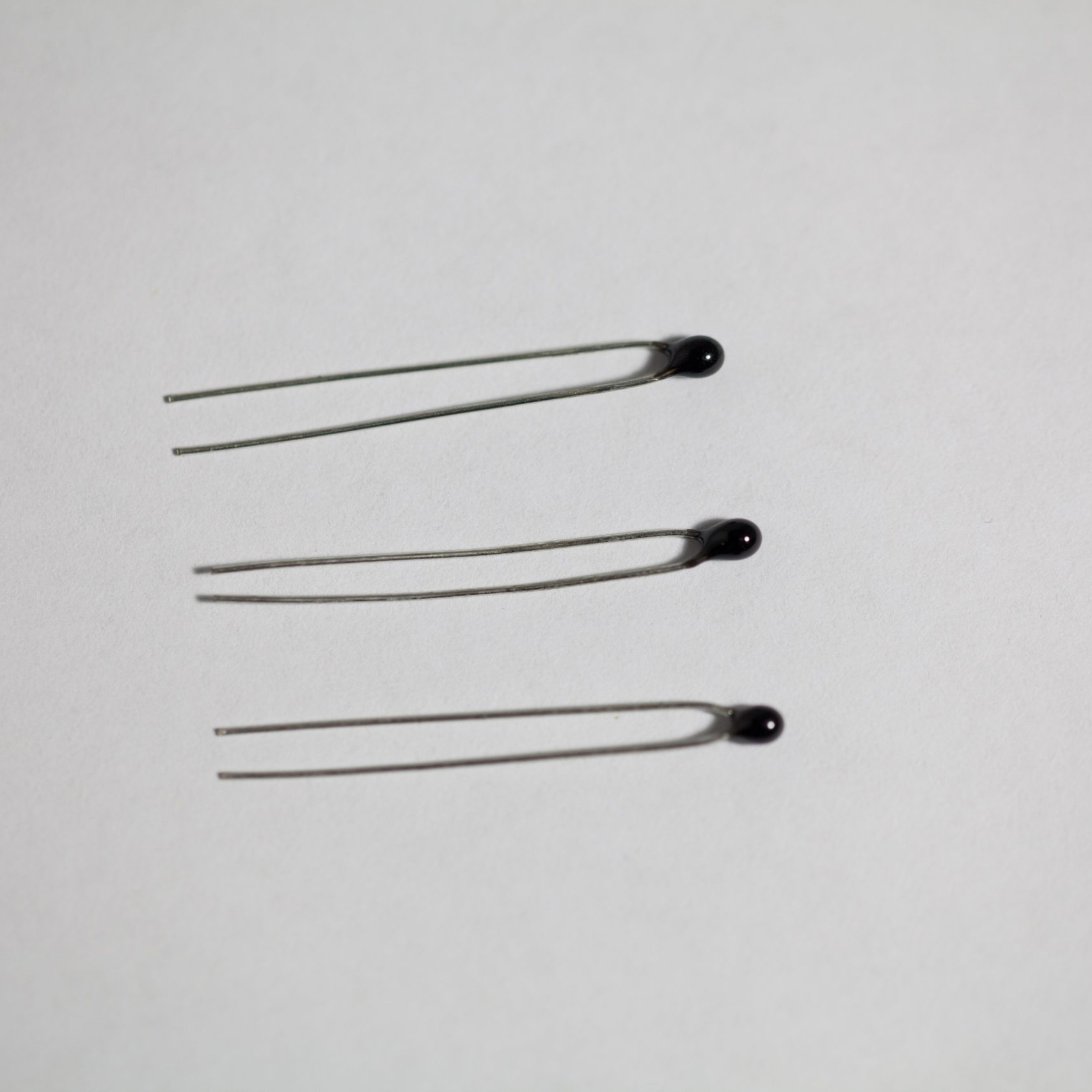

Epoxy-Coated NTC Thermistor for Automotive Seats and Heated Steering Wheels
| Specification | R25ºC (KΩ) |
B25/50ºC(K) | Disspation constant |
Thermal time constant |
Operating tempe rature range |
| SJMF5A- -347/395/385-202 | 2 | 3470/3950/3850 | (ln still air) ≥ 2.1mW/ ºC |
(ln still air) ≤ 20 S |
-30ºC~120ºC |
| SJMF5A- -327/347/395/393-502 | 5 | 3270/3470/3900/3935 | |||
| SJMF5A- -338/347/390/395-103 | 10 | 3380/3470/3900/3950 | |||
| SJMF5A- -395/420/405-473 | 47 | 3950/4200/4050 | |||
| SJMF5A- -395/420/405-503 | 50 | 3950/4200/4050 | |||
| SJMF5A- -395/348-152 | 1.5 | 3950/3480 | |||
| SJMF5A- -397/418-104 | 100 | 3970/4180 | |||
| SJMF5A- -453-105 | 1000 | 4530 |
Key Features
- High Accuracy: Provides precise temperature readings, making it ideal for critical applications.
- Epoxy Coated: Protects the thermistor from moisture, chemicals, and mechanical stress.
- Wide Operating Temperature Range: Effective performance from -30°C to +120°C.
- Rapid Response: Quick reaction to temperature changes, ensuring real-time monitoring.
- Long-lasting Stability: Maintains consistent performance and accuracy over prolonged use.
Specifications
- Resistance Tolerance: ±1%, ±2%, ±3%, ±5%
- Temperature Range: -30°C to +120°C
- Dissipation Constant: ≥2.1mW/°C (In still air)
- Thermal Time Constant: ≤20seconds (In still air)
Epoxy coated NTC thermistor is versatile and can be used in a variety of applications, including:
- Automotive Systems: For accurate temperature monitoring and control in engines and other critical components.
- Consumer Electronics: Ensures safe operation by monitoring and regulating device temperatures.
- Medical Devices: Provides precise temperature measurement essential for sensitive medical equipment.
- Industrial Equipment: Used in machinery requiring reliable temperature control and monitoring.
- HVAC Systems: Helps maintain efficient operation of heating, ventilation, and air conditioning systems.
- Household Appliances: Ideal for use in air fryers, smart toilets, toasters, and other small appliances that involve heating.
- Energy Storage Systems: Monitors temperature in battery packs and other energy storage solutions to ensure safe and efficient operation.
Why Choose Minsing’s Epoxy coated NTC Thermistor?
Minsing’s epoxy coated NTC thermistor stands out for its exceptional reliability and performance. Our products are subjected to stringent quality checks to ensure they meet the highest standards. By choosing Minsing, you benefit from:
- ISO9001 Certification: Assurance of high-quality manufacturing practices.
- IATF16949 Certification: Compliance with international automotive quality management systems.
- Custom Solutions: We offer tailored solutions to fit your specific requirements.
-
